Flange Base Locating Shaft, Welded Fixing Pin, Stamped Assembly Part

Flange Base Locating Shaft, Welded Fixing Pin, Stamped Assembly Part

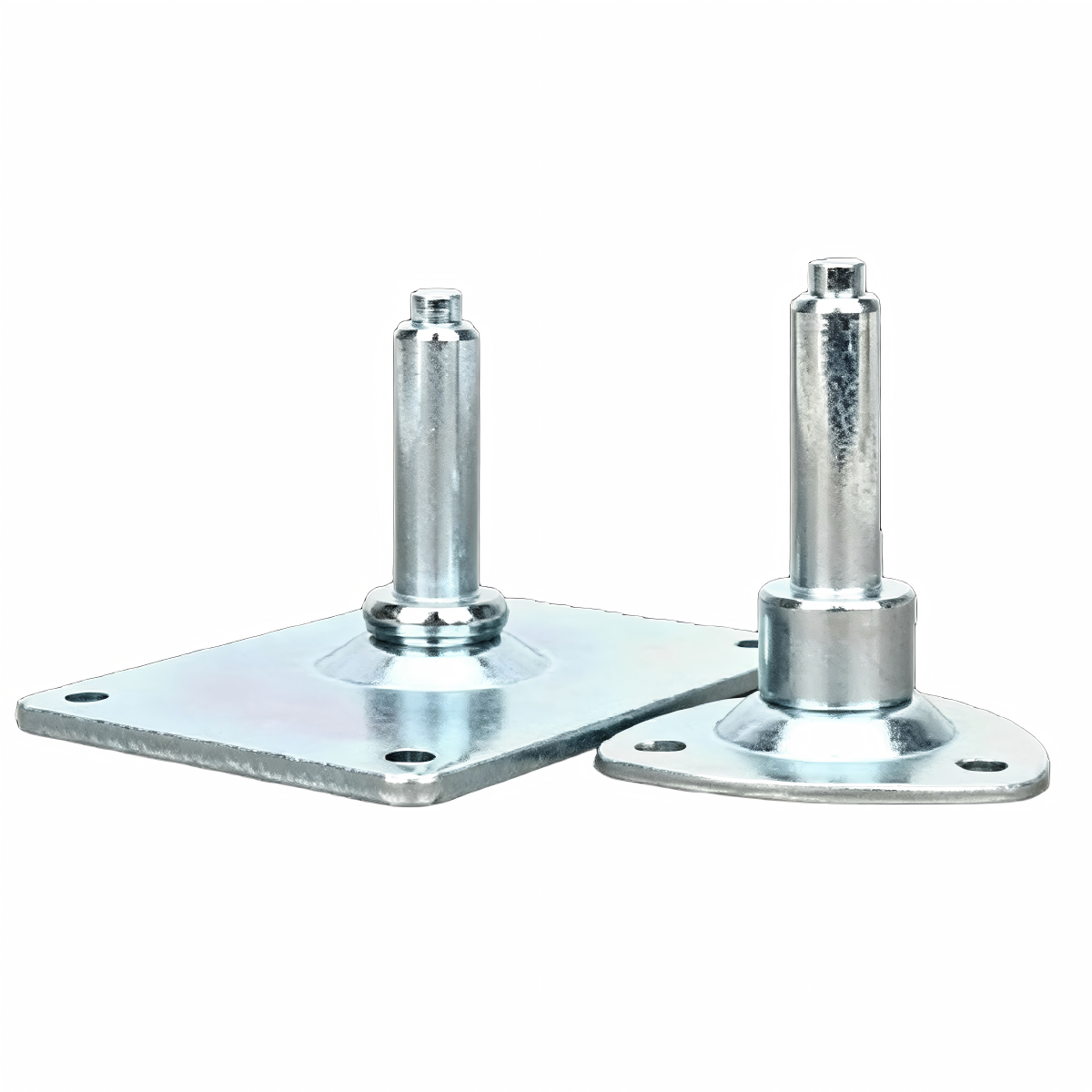

Combined part of flange plate and locating shaft. Stamped steel base matched with CNC‑turned pin shaft, galvanized for rust resistance. High coaxial accuracy, firm connection. Custom base shape, shaft diameter and overall height based on drawings.

Product Introduction

Flange base locating shaft is assembled by stamped flange plate and CNC‑turned pin shaft by riveting, no secondary welding required. Galvanized surface for anti‑corrosion. Pre‑drilled mounting holes on base for easy installation. Step‑designed shaft works for limiting and hinging with stable tolerance.

Product Advantages

1.Combined stamping & turning process, shorter lead‑time and lower cost

2.High riveting strength, anti‑loose under continuous vibration

3.Galvanized finish for rust‑proof in harsh working environment

4.Fully customizable: base outline, hole position, shaft diameter and length

Application

Widely applied in automation equipment, transmission parts, instrument frames and home appliances as locating pin, hinge shaft and limit fixing shaft.

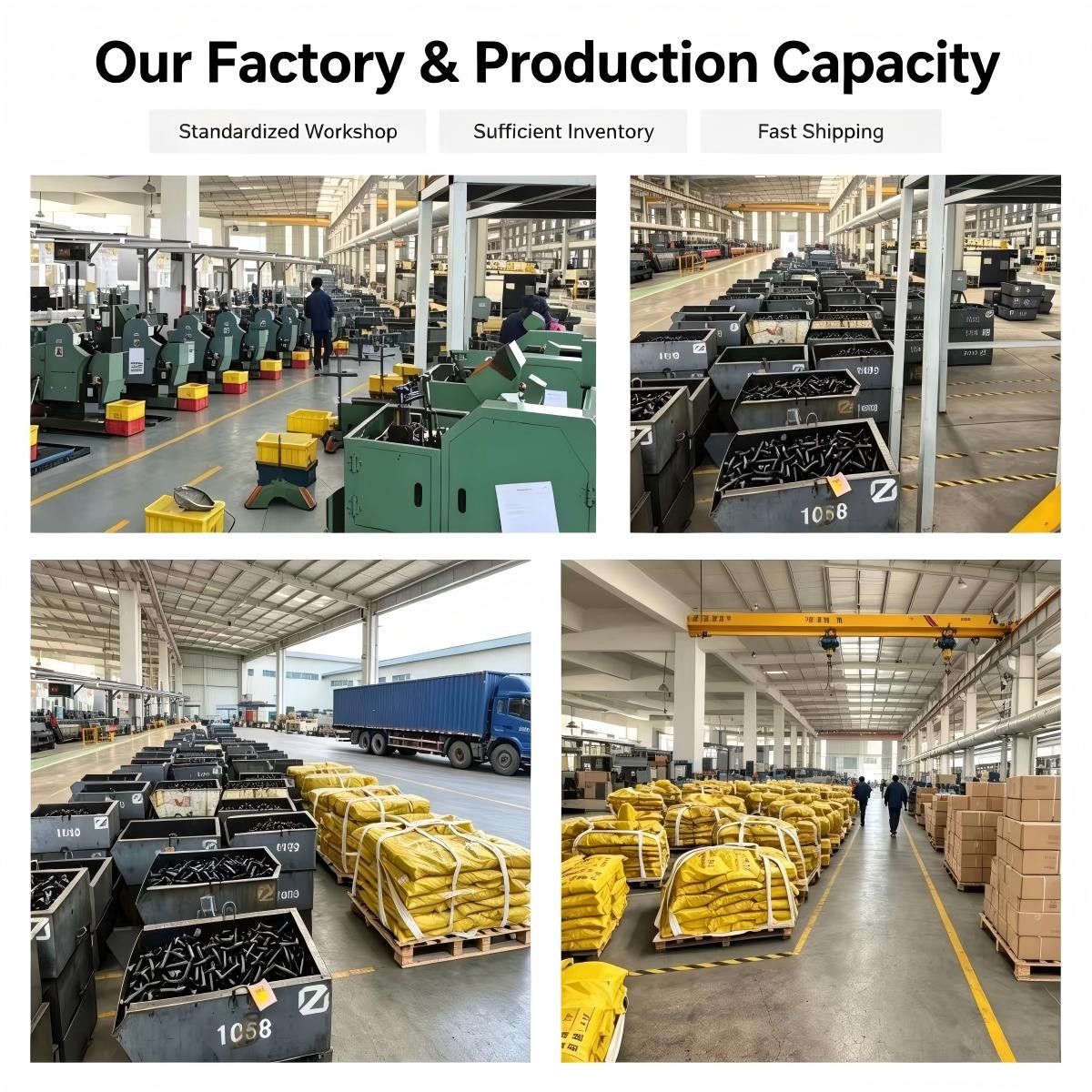

Our Factory

Full‑service manufacturer for stamping, CNC turning and riveting assembly. Fast prototype sampling and mass production. Batch dimension inspection guarantees consistent precision and on‑time delivery.
